Разделитель сигнала HDMI to HDMI+Audio(Spdif+L/R) Extractor 2CH/5.1CH 4K 3D

2 100 рублей

1 995 рублей

Артикул: PX/AY60V14
В наличии
Товар участвует в акции «КуПи товар месяца со скидкой 5%».
До 31.10.2018 скидка составляет 5%

Количество:







Посоветуйся с друзьями


Features



1.Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.

2.Audio output supports: SPDIF + R/L analog Audio Output.

3.Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.

4. HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.

5.LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light.



Specifications



1.HDCP Version..................HDCP1.4

2.HDMI Version...................HDMI1.4b



1.HDMI resolution..2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

2.Support video color format.............24bits/deep color 30bit,36bit

3.Audio output...............................................L/R+SPDIF

4.Max bandwidth.................................................340MHz

5.Max baud rate................................................10.2Gbps

6.Input/ Output TMDS signal........................0.5-1.5Volts p-p(TTL)

7.Input/ Output DDC signal.............................5Volts p-p(TTL)

8.Input cable distance.................<=7m AWG26 standard cable HDMI

9.Output cable distance................<=8m AWG26 standard cable HDMI

10.Max working current............................................500mA

11.Power adapter format........input:AC(50/60Hz)100V-240V;Output:DC5V/1A

12.Operating temperature range..........................(-15 to +55°C)

13.Operating humidity range...............5 to 90% RH(NO Condensation)

14.Dimension (LxWxH)..............................84.5 x 61.8 x 21(mm)

15.Weight........................................................135g



1

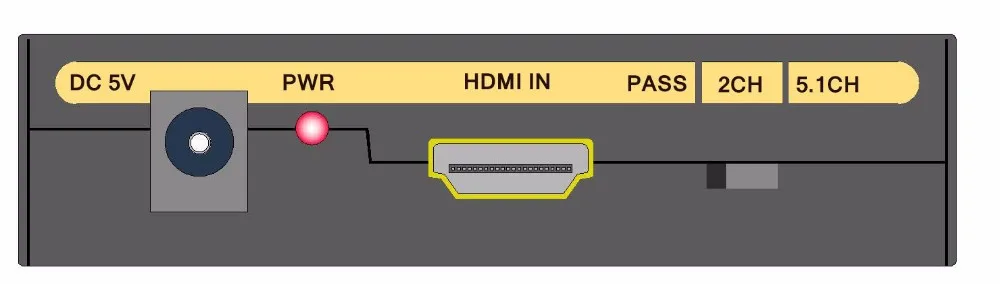

1.DC 5V:DC +5V Power supply interface.

2.PWR: Will light up in red when power is on.

3.HDMI IN: HD audio video signal input interface which connect to input device.

4.PASS 2CH 5.1CH: Audio format(EDID)selection switch.

5.PASS: When the witch is shifted to this position, the audio signal format output from the adapter is according to TV default audio format(EDID).

6.2CH:When the witch is shifted to this position, the Toslink interface of the adapter will output 2ch digital audio signal; L/R interface will output analog 2ch audio signal.

7.5.1CH: When the witch is shifted to this position, the Toslink interface of the adapter will output 5.1ch digital audio signal.



Note



When select to this mode, whether the Toslink will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio. If it contains, Toslink interface will output 5.1 channel audio signal while headphone L/R interface output nothing. If it not contains, Toslink and earphone L/R interface are all output 2 channel audio signal.

2



1.GREEN LED: HDMI output LED indicator light.Will light when extractor is connected to the TV correctly.

2.HDMI OUT: HD audio video output interface.

3.Toslink: Digital audio output interface.

4.L R: Analog audio output interface.

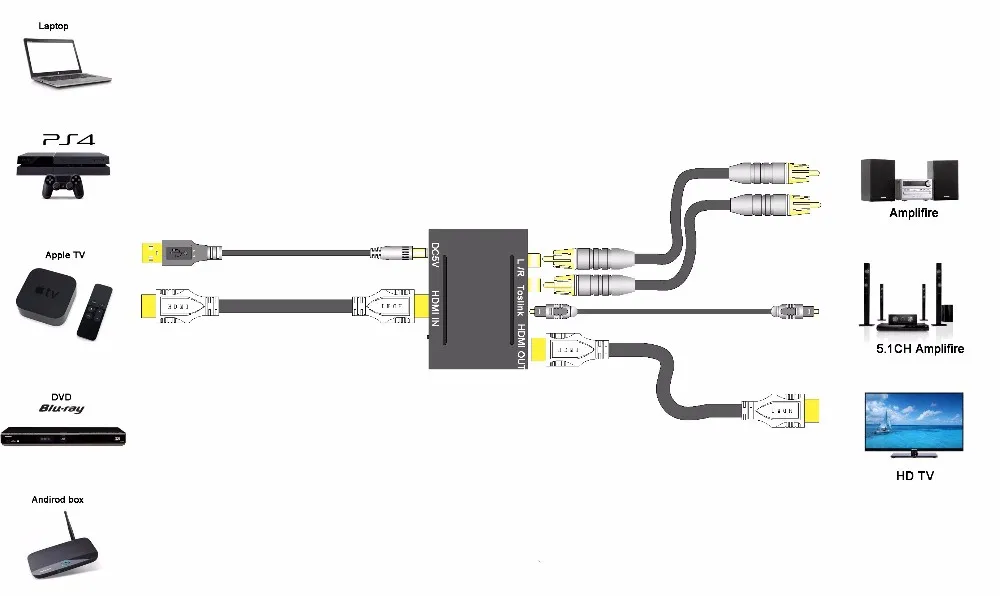

Operating and Connecting

    Before installation, please make sure all devices you wish to connect have been turned off.

1. Use the HDMI cable to connect the HDMI input interface to the HD source device.

2. Use the HDMI cable to connect the HDMI output interface to the HD display.

3.Use the audio cable to connect the R/L interface to the audio equipment.

4.Use the optical cable to connect the SPDIF interface to the audio equipment

5.Use the 5V USB power cable to connect the converter to the 5V/1A USB plug.
